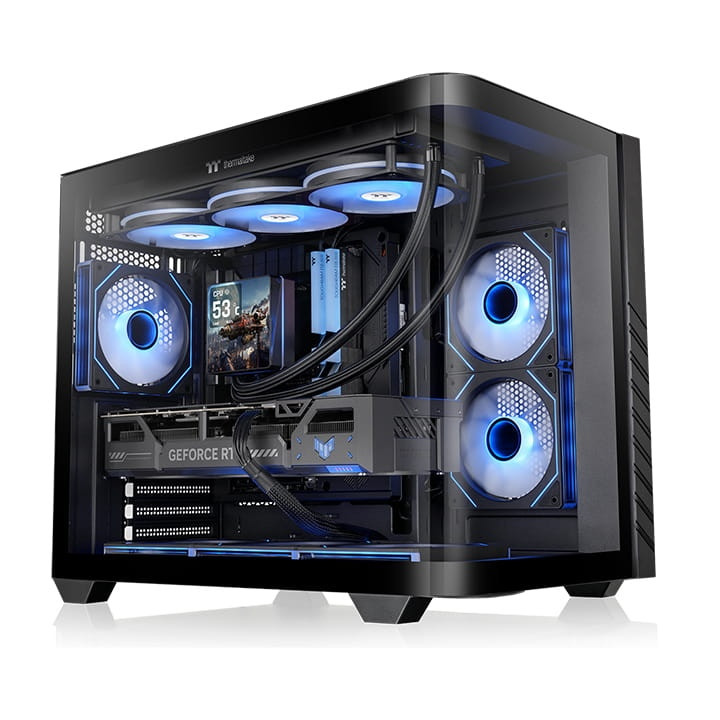

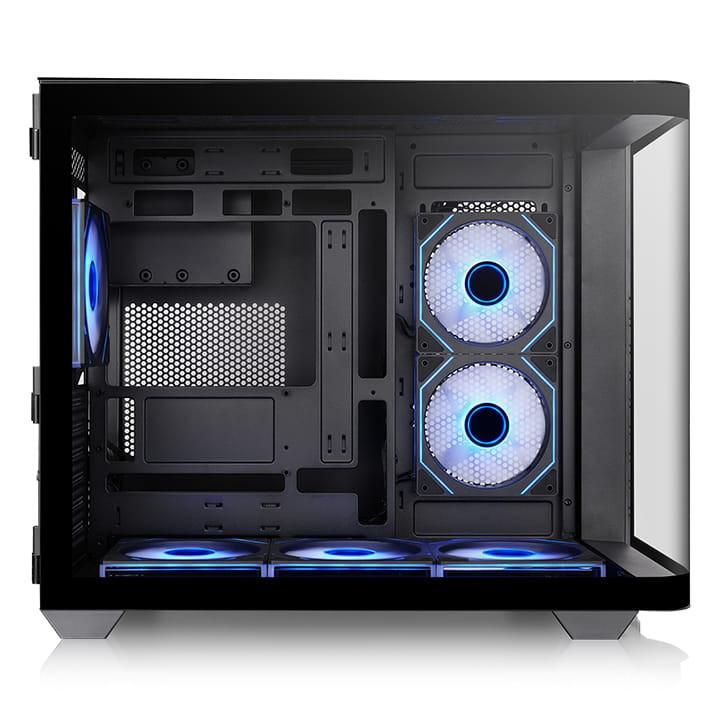

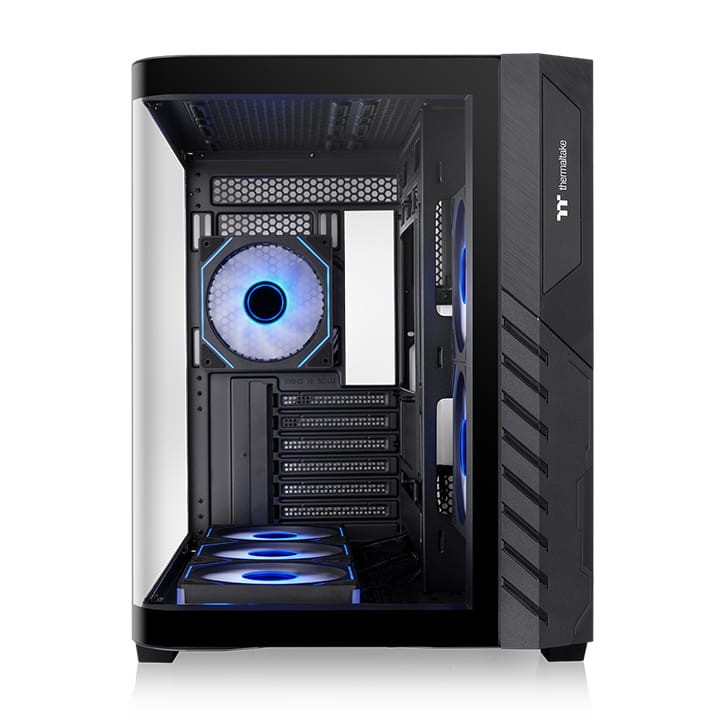

CA-11V-00M1WN-01
TYPE DE BOITIER
: Mid Tower
DIMENSIONS (H x L x P)
: 388 x 295 x 479.4 mm
(15.28 x 11.61 x 18.87 inch)
PANNEAU LATÉRAL
: 4mm Curved Tempered Glass x 1
MATÉRIEL
: SPCC
SYSTÈME DE REFROIDISSEMENT
: Right(intake):
120 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500 rpm, 24.9 dBA) x 2
Bottom(intake):
120 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500 rpm, 24.9 dBA) x 3
Rear(exhaust):
120 x 120 x 25 mm Infinity ARGB PWM Fan (1500 rpm, 21.8 dBA) x 1
BAIES DE LECTEUR
: 2 x 3.5", 2 x 2.5"
FENTES D'EXTENSION
: 6
CARTES MÈRES
: 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX)
Hidden-Connector Motherboard
: 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX)
PORT E/S
: USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
Bloc Alimentation
: Standard PS2 PSU (optional)
SOUTIEN DES VENTILATEURS
: Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right (M/B Side):
2 x 120mm, 1 x 120mm
Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Rear:
1 x 120mm
1 x 140mm
SUPPORT RADIATEUR
: Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right (M/B Side):
1 x 240mm, 1 x 120mm
AUTORISATION
: CPU cooler max height: 175mm
VGA max length: 420mm
PSU max length: 250mm
